Ninefourteener's Progress Thread + Pics

If you are reading this for the first time, this is my 5+ year constantly-updating progress thread on my 2006 WRX-TR. I bought it new in Jan of 2006, and it has been a work in progress ever since. The thread was actually started in March of 2007, a little over a year (and a few basic mods) after buying the car.

With that, rather than doing an "updated" mod list every few pages, I felt it best to paste the most current listing right here, and keep it constantly updated.

After the list, the post will remain exactly as it was originally posted back when I started.

Current Mod list (updated 17 November, 2012)

EXTERIOR:

SPT door logos
slcsubaru.com rear window decals - Azure Blue
COBB Tuning license plate frames
07 STI Ltd. Front lip w/ Azure Blue SPT Logo
Hella Supertones - custom painted black/azure blue
Custom steel hand-made rear towhook - powdercoated azure blue
Muteki spline-drive lugnuts – powdercoated Azure blue

SUSPENSION MODS:

WORK Emotion Cr-Kai 17x9, +44 BRONZE
Federal SS 595 - 255/40/17, 240 treadwear
KYB GR2 Excel G Struts (intentionally purchased after a neck injury)
Tanabe DF210 Springs
Cobb 25mm front swaybar + bushings
Cobb 25mm rear swaybar + bushings
Cobb rear swaybar adjustable mounts
Whiteline rear endlinks
Kartboy front endlinks
Greddy front Strut tower bar
Generic rear strut tower bar
Generic undercarriage A-arm brace
Kartboy rear subframe lockdown bolt kit
Kartboy read diff outrigger bushings (hard)

BRAKES:

Rotora front FC4 4-piston Big Brake Kit calipers
Rotora 13" (330mm) front slotted rotors
Brembo factory STI rear calipers
DBA 2657 STI 12.4" (316mm) rear slotted adapter rotors
Stoptech steel braided brake lines (4)
All 4 dust shields removed / drilled out
Grimmspeed master cylinder brace
ATE Super Blue racing brake fluid
* Calipers custom powdercoated Azure Blue with SPT logos

ENGINE, ECU MANAGEMENT, AND EXHAUST

COBB AP V1, stage 3 map, VF39, 91 or 93 Octane
IHI VF39 turbo
Koyo 53mm aluminum racing radiator
NGK Iridium spark plugs
SPT intake
SPT intake heat shield
Walbro 255 lph fuel pump
Removal of intake silencer and Air intake duct
Factory STI Intercooler
Factory STI Splitter and rubber bellows
Factory STI Intercooler sprayer (trunk carpet, tank, switch, pump, relay)
Custom I/C sprayer low-level & pump activation LEDs
Perrin silicone Y-pipe (blue)
Samco 7-piece silicone hose kit (blue)
COBB turbo heat shield
X02 Racing catless 3-inch stainless steel Turboback exhaust
COBB polyurethane exhaust hangers
Custom built 3-inch axleback section w/ A-spec muffler
*** axleback section powdercoated metallic silver
SPT blue billet oil cap
OPTIMA yellow-top battery
SPT Blue Billet aluminum battery tie-down
Royal Purple 10W30 synthetic motor oil

TRANSMISSION MODS

Exedy Stage 1 Organic racing clutch kit
ACT Streetlight forged chromoly flywheel (14.4 lbs)
Subydude single-adjustable short shifter
Perrin SSK counterweight Shift knob
Perrin Polyurethane Front shifter bushing
Kartboy Polyurethane Rear shifter bushing
AMSOIL 75w90 "Severe Gear" synthetic transmission gear oil
Redline 75w90 - standard synthetic rear diff gear oil

INTERIOR, STEREO AND GAUGES

Factory STI front seats, all airbags 100% operational
Factory STI rear seats
Autometer C2 mechanical oil pressure, full sweep 0-100
Autometer C2 mechanical boost/vacuum, full sweep, -30+20
Autometer C2 electrical Air/Fuel Ratio, full sweep
Autometer C2 electrical Pyrometer EGT, full sweep 0-2000
Autometer C2 electrical Voltmeter, full sweep, 0-18 volts
Autometer C2 electrical Fuel pressure, full sweep, 0-100 psi
Autometer C2 DPSS stage 2 tachometer/shift light
Autometer Tach adapter
Cyberdyne (amber) digital intake temp gauge w/ memory (pre-intercooler)
Cyberdyne (green)) digital intake temp gauge w/ memory (post-intercooler)
Custom "stealth switch" to override headlights & dim all gauge lights
Autometer triple gauge clock replacement pod
Autometer triple gauge A-pillar pod
Glow$hit single cup pod (top of steering column)
Generic dual gauge pod (center console)

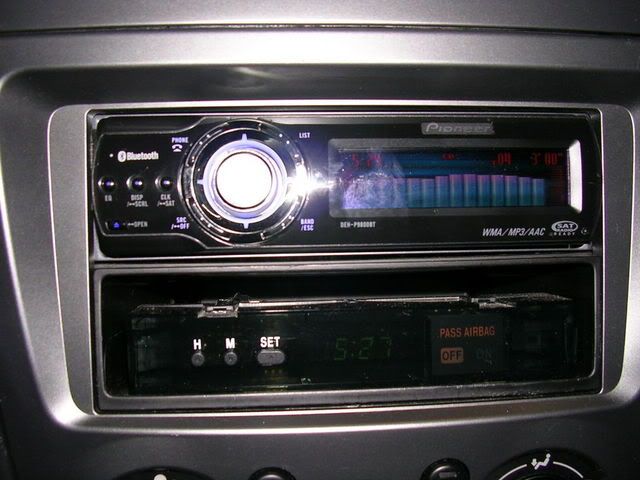

Factory Clock/airbag indicator relocated to lower stereo din
Pioneer 9800 Bluetooth stereo head unit
Samsung Galaxy Note2 Android smartphone (plays MP3s+talk+GPS voice wirelessly)
Factory Subaru Subwoofer (installed afterward)
Rockford Fosgate 6.5” aluminum dual coaxial speakers (front)
Rockford Fosgate 5.25” aluminum dual coaxial speakers (rear)

THIS IS THE ORIGINAL POST - DATED MARCH 20th, 2007


Greetings!

So..... with the arrival of the new wheels and the recent Suspension mods.... I've decided to create an "all-inclusive" thread... with all the mods I've done so far.... and when I do more, just add to it, rather that keep creating new threads.

It's gonna be LONG..... with LOTS of pics.... and I'm going to keep it going every time I do something or take new ones. And I must admit... I'm proud to say that absolutely everything done, was one by me, with hand tools, in my garage.

Starting with EXTERIOR/SUSPENSION MODS:

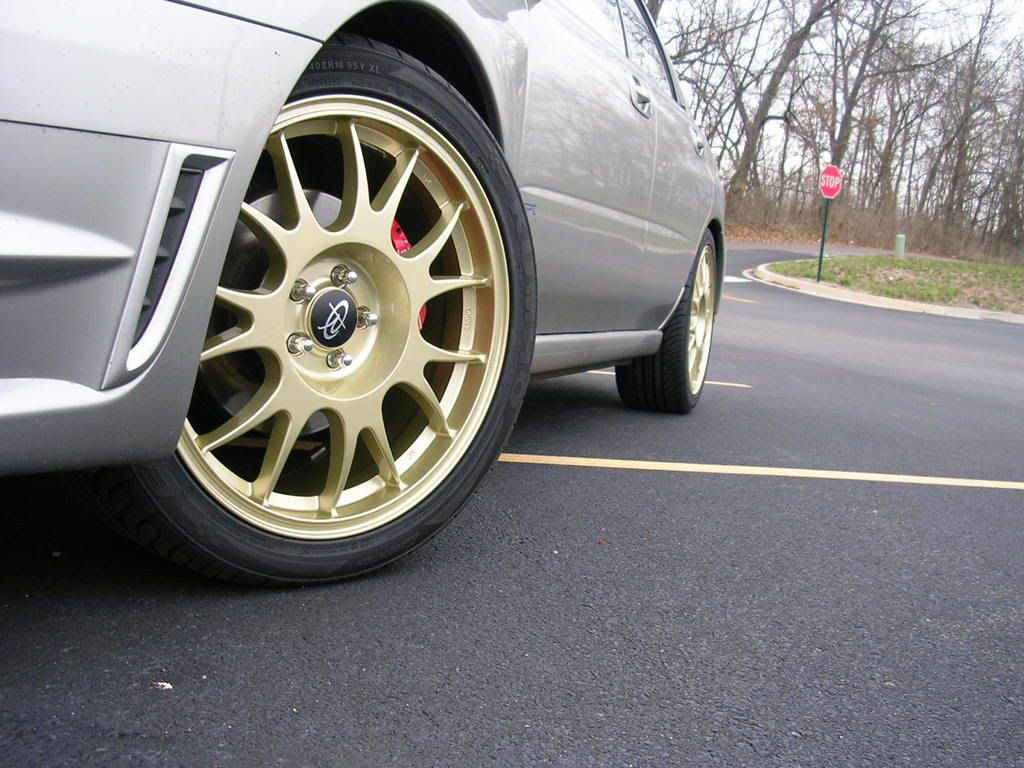

Rota 18x8 GOLD Formula Mesh wheels
Kuhmo Ecsta SPT tires 235/40/18, 280 treadwear
Eibach Pro-kit springs (1.2 front, 0.8 rear)

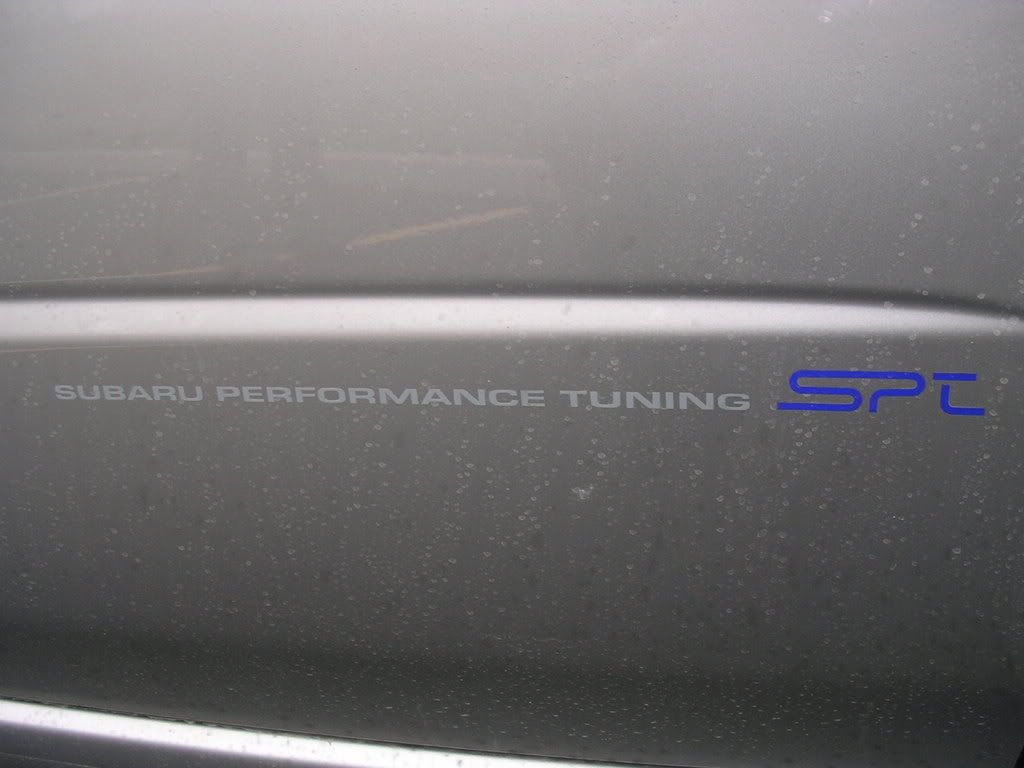

SPT door logos
COBB Tuning license plate frames









Now onto ENGINE, ECU MANAGEMENT, AND EXHAUST

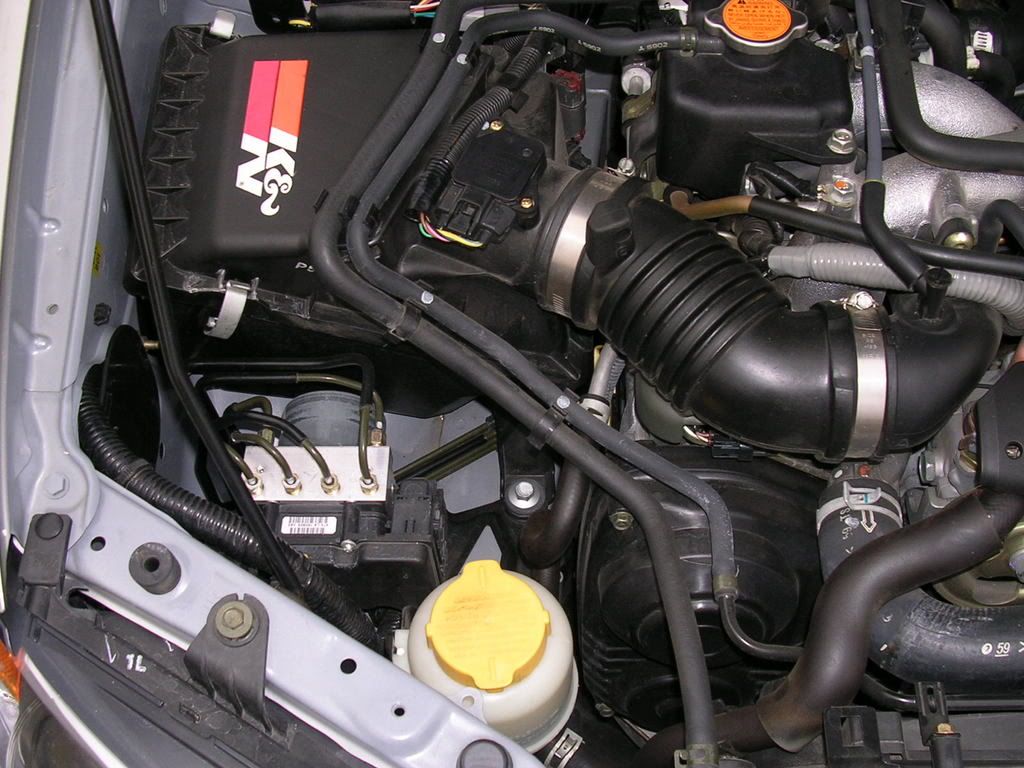

K&N drop-in filter
Removal of intake silencer and Air intake duct
Subaru Fender hole plug
Factory STI Intercooler
Factory STI Splitter and rubber bellows
COBB heat shield
X02 Racing full 3-inch stainless steel Turboback exhaust - Full Cat delete
Subydude short shifter
Perrin Shift knob
Perrin Polyurothane bushings
COBB Accessport V1, Currently running stage 2, 93 Octane











And Lastly, INTERIOR, STEREO AND GAUGES

Autometer C2 mechanical oil pressure, full sweep 0-100
Autometer C2 mechanical boost/vacuum, full sweep, -30+20
Autometer C2 electrical Air/Fuel Ratio, full sweep
Autometer C2 electrical Pyrometer EGT, full sweep 0-2000 degrees
Autometer C2 electrical Voltmeter, full sweep, 0-18 volts
Autometer C2 DPSS stage 2 tachometer/shift light
Autometer Tach adapter
Autometer triple gauge clock replacement pod
Glow**** cup pod (top of steering column)
Glow**** grey triple gauge A-pillar pod
Factory Clock/airbag indicator relocated to lower stereo din
Pioneer 9800 Bluetooth head unit
Cingular 3125 Windows smartphone (plays MP3s wirelessly)
Rockford Fosgate 6.5 aluminum dual coaxial speakers (front)
Rockford Fosgate 5.25 aluminum dual coaxial speakers (rear)







Well..... I think thats about it..... FOR NOW!!!!


·
Registered
Joined
·
1,020 Posts
how does the cobb h/s fit...does it rattle and what mounting points did u use?


·
Registered
Joined
·
1,304 Posts
your interior looks like a night club, just kiding, I happen to like the multi. gauge look. I have a 5" tack for gods sake.


·
"Supreme Subaphile Extraordinairre"
Joined
·
1,274 Posts
Discussion Starter #6
how does the cobb h/s fit...does it rattle and what mounting points did u use?

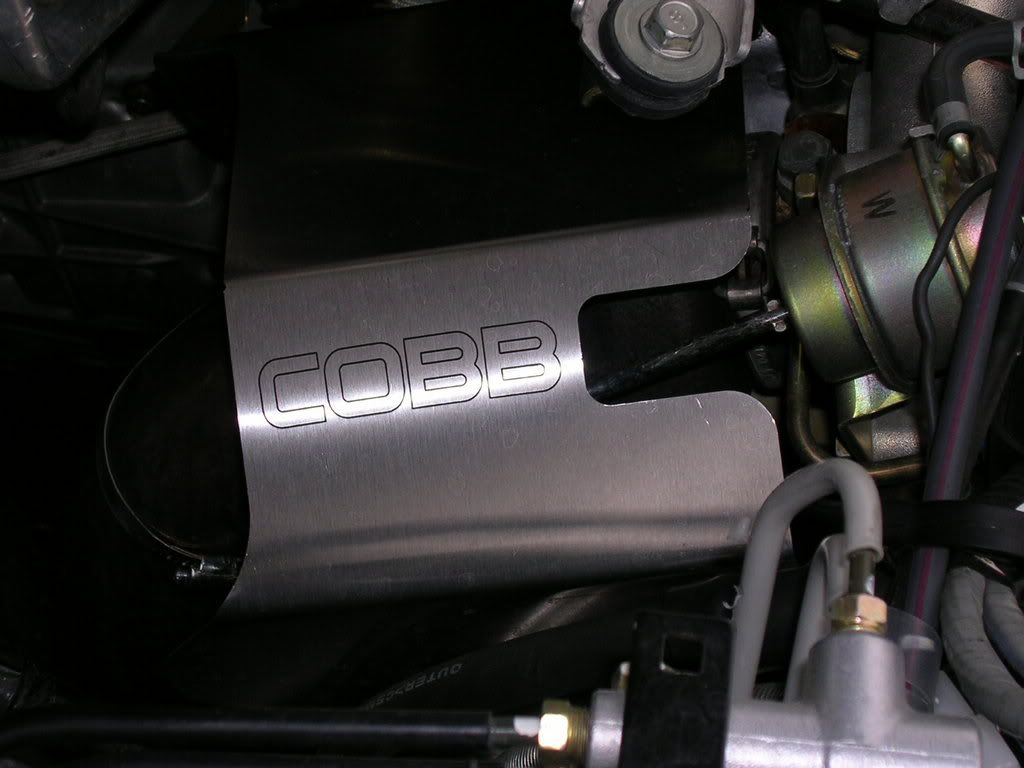

It fits great...... can't reuse the factory heat shield unless you cut the crap out of it to fit around the DP.

It attaches with 3 bolts...... to the factory bracket.

I did have to trim about 1/4 inch off the inside corner.. it was rattling against my tranny... all fixed now though, 100%


·
"Supreme Subaphile Extraordinairre"
Joined
·
1,274 Posts
Discussion Starter #7
looks good so far, get a lip for the front :thumbup:
Thanks! It's in work. I'm hooking up two SPI air temp gauges to measure pre and post I/C temps right now...... and I still need to get a FP gauge to fill the hole in my a pillar pod..... and I need to hook up an I/C sprayer before it gets hot outside...

Then..... I might get a lip.

Haven't found an affordable one yet that looks factory though. Suggestions?.


·
"Supreme Subaphile Extraordinairre"
Joined
·
1,274 Posts
Discussion Starter #8
Ok..... so it's done.... pre and post intercooler temps....... next step... Intercooler sprayer. I was actually surprised with the results. The post I/C temp really doesn't change much at all. Stayed right at 110, only fluctuating maybe 5 degrees.

The pre-I/C temp generally runs 15-30 degrees hotter.. depending on how much you get on it.

I imagine adding 90 degree weather, and an intercooler sprayer will change these readings dramatically.

So I started with the Perrin Silicon Ypipe I bought from Ben-no (BTW.. thanks). This is actually quite nice.. It flows MUCH better that the factory STI Y-pipe.... I noticed a definate improvement in torque.

And then I did the same thing to the inlet tube. Senders are tightly mounted, and secured with high temp silicon.



Then of course, two SPI Air temp gauges... mounted low on the passenger side of the center console. I had to trim the pod a bit with a dremel, to "tilt" it toward me.



Wired everything up, and reinstalled everything:



Then..... I installed my "stealth switch"..... To detract attention when I dont want it. Basically, it's a red LED switch (on the center console empty tabs), that when turned off....... dims all my gauges (doesn't cut power, just the lights). Just to give you an idea of what my disco-car looks like on the inside when driving at night... I intentionally took this picture without a flash..



And now....... my "stealth switch"... turns off everything but the tachometer (and factory stuff)



WHATTAYA THINK???


·
Registered
Joined
·
0 Posts
looks good :thumbup:


·
Registered
Joined
·
67 Posts
You seem to know your way around wiring :thumbup:

It all looks good, pretty original. Seeing your drop made me decide to get the Eibach's. My wheel tire setup (17" wheel with 235/45/17 tires) calculates really close to an 18" wheel with 235/40/18 tires.


·
"Supreme Subaphile Extraordinairre"
Joined
·
1,274 Posts
Discussion Starter #12
You seem to know your way around wiring :thumbup:

It all looks good, pretty original. Seeing your drop made me decide to get the Eibach's. My wheel tire setup (17" wheel with 235/45/17 tires) calculates really close to an 18" wheel with 235/40/18 tires.
Thanks! The wiring? Well.. its a learning process. Honestly though.... the area behind my stereo looks like something out of a Frankenstein movie--LOL

As for the springs... I absolutely LOVE them...there's no rubbing at ALL.. even with the 235s on there. But, the springs I think are fully settled, the gaps are even, and it doesn't look "lowered".. it just looks "right".

Here's some "further away" pics I took a couple days ago, after the springs settled:







·
Banned
Joined
·
0 Posts
dude that's hot. I love the ridiculous excess of gauges you got. I wanted to do something similar. I'm impressed with how clean it is under the hood. Mine looks so dirty it's impossible to keep clean. Stupid snowy dirty semi-off road driving...

Did you just take the standard clock and relocate it? It's the ONLY thing that stands out as not being super cool. Who needs a clock anyway man just get rid of it ;-)


·
"Supreme Subaphile Extraordinairre"
Joined
·
1,274 Posts
Discussion Starter #14
Did you just take the standard clock and relocate it? It's the ONLY thing that stands out as not being super cool. Who needs a clock anyway man just get rid of it ;-)
Thanks!

Yea... it's just the standard clock.... I did have to splice in and extend the 5 wires that run to it though, because the factory harness wasn't long enough to run down there.

If it were just a clock... It'd be gone.

It's also a passenger side airbag indicator. I've got a 8-month pregnant wife, and a 10 year old daughter... I don't mess with safety features...

Thats why I haven't upgraded the seats or steering wheel.... I won't mess with airbags.... some stuff is just too important.


·
Banned
Joined
·
0 Posts
Way to be practical... ;-)

I'd recommend adding some more LEDs to keep that stealth led button company that indicates if the airbags are on or not. But i'm an electrical engineer, I like blinking LEDs lol.

Wow man. Your wife is pregnant and you still have the Porsche and still modding the WRX. You're my hero, and everyone who's had to sell their sports car to buy a minivan for their family (i haven't, i'm single, sucks to be those guys coerced by their wives tho).

Keep it up you give me lots of good inspiration for my own glowing gauges. I'll just have more blinky lights that do nothing but make my car look like it came from the 1960's star trek episodes lol.


·
"Supreme Subaphile Extraordinairre"
Joined
·
1,274 Posts
Discussion Starter #16
^^^^ LOL

No... the Porsche is gone... I sold it a couple weeks ago.

But... it was my choice... the wife actually didn't want me to get rid of it.

I'm actually in the market for a 64 El Camino--LOL


·
"Supreme Subaphile Extraordinairre"
Joined
·
1,274 Posts
Discussion Starter #17

·
Banned
Joined
·
0 Posts
damn man i'm gonna bid against you for that lol j/k. like i can afford it after a hopefully-not engine rebuild.

That's sexy though.


·
"Supreme Subaphile Extraordinairre"
Joined
·
1,274 Posts
Discussion Starter #19
^^^^

LOL.... I wouldn't have posted it if it wasn't already bought-- :)

I used the "Buy It Now"... $479 with free shipping

I've watched FIVE other VF39s sell in the past week for almost $600.

It was only listed for just over 2 hours... and I snached it up... appears the seller didn't do his research on what the going prices are. Good for me... bad for him.

290 WHP.... coming soon :)


·
Banned
Joined
·
0 Posts
Yea I noticed after my little joke. Grats man. That's a great buy. Hope it works out well for you.

Post some dynos when you get it in!!

And if you got time take pics along the way!! :thumbup: :thumbup: :thumbup:
