    Smile Finally got a Protune today

    Wow – I have a different car now! I installed a Deadbolt Monster TD04 with all available spool fast options last summer using an off the shelf Cobb stage 2 map. The spoolup was noticeably faster, but did not make big numbers on the butt dyno.

    Prior to the Monster the WRX pulled 231 awdhp, 230 awdtq on a DynoJet. Pretty good for an OTS map.

    A GM boost control solenoid was added just prior to the tune today. The baseline numbers on the graph are the roller coaster-like broken lines. The OTS map did not know how to deal with the new solenoid. After several dyno pulls and many tuning tweaks, Hill at Agile Automotive arrived at the results below. http://www.clubwrx.net/forums/afterm...utomotive.html

    Nice torque number, eh? Boost maxes out at 19 psi. All in all I am quite happy with the results.

    The full pic gallery: Protune pictures by 04sptwrx - Photobucket

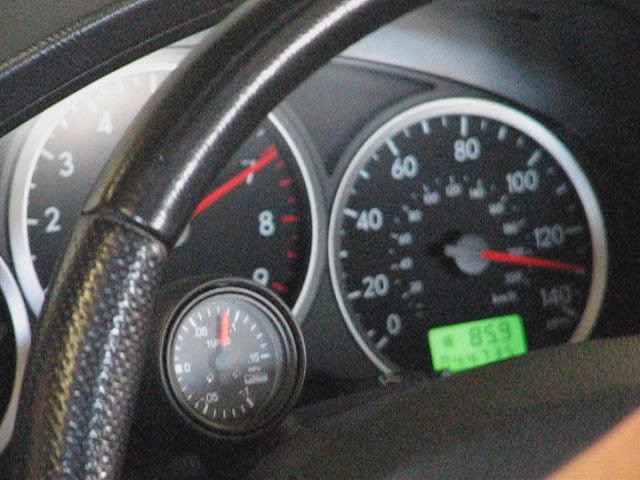

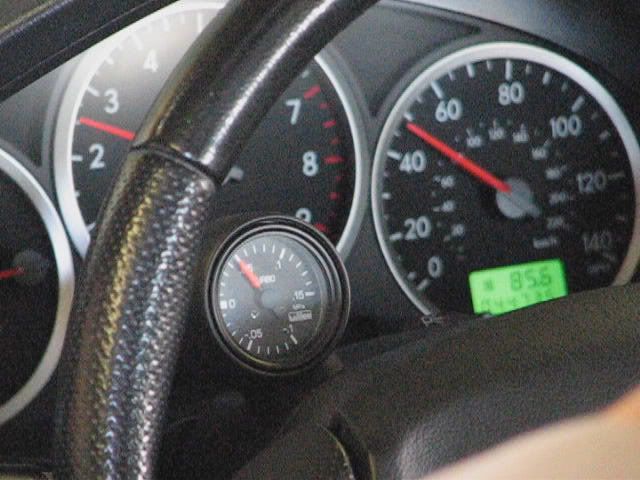

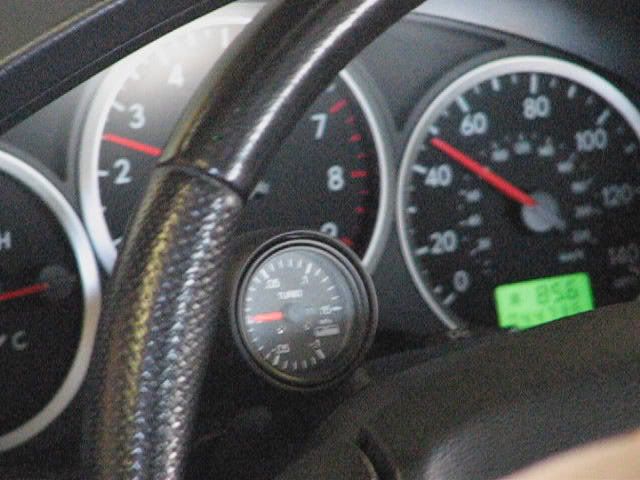

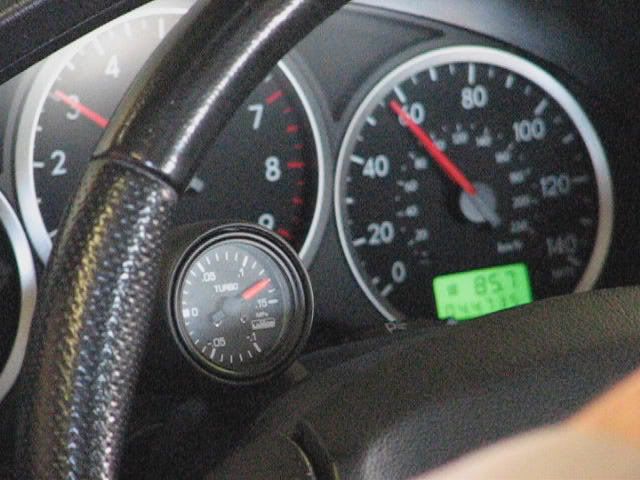

    The gauge pics are stills from an .avi I shot while the WRX was on the dyno. They show just how fast and strong the boost comes on. In fourth gear full boost is achieved at a little over 3000 rpm.











    4000 rpm



    5000 rpm



    Redline

    Last edited by Sasquatch; 04-24-2009 at 07:12 PM.
    Moderator for: Aftermarket Vendor & Installer Review / Detailing Forum / Engine Modifications / Exterior & Appearance
    New Member Hangout / Off Topic / Tri-State
    ScoobyDMC #003 Blobeye Syndicate #10
    2004 WRX Sedan PSM 5MT Tactrix Stage 2+ Blouch TD04 19T @ 21 psi
    Mods & Pics

  2. Remove Advertisements
    ClubWRX.net
    Advertisements


  3. #2
    Registered User wrx wagone's Avatar
    Join Date
    May 2005
    Location
    Phillytown, PA
    Posts
    10,775
    Nice, Bill! I didn't know you were planning all of this. I'm very much looking forward to seeing this thing at the Victory Meet. Maybe I can even drive it?

    Also I have to say, I think that you have built one of the nicest streetable Subaru's I've seen. Nicely done.
    This message printed on 100% recycled electrons.

  4. #3
    Moderator   Sasquatch's Avatar
    Join Date
    Apr 2004
    Location
    Southeastern PA
    Posts
    31,252
    I Support ClubWRX
    Quote Originally Posted by wrx wagone View Post
    Nice, Bill! I didn't know you were planning all of this. I'm very much looking forward to seeing this thing at the Victory Meet. Maybe I can even drive it?

    Also I have to say, I think that you have built one of the nicest streetable Subaru's I've seen. Nicely done.
    Thanks. It really has turned out nice. Should have done the Protune years ago. The thrust at 3K is unreal.
    Moderator for: Aftermarket Vendor & Installer Review / Detailing Forum / Engine Modifications / Exterior & Appearance
    New Member Hangout / Off Topic / Tri-State
    ScoobyDMC #003 Blobeye Syndicate #10
    2004 WRX Sedan PSM 5MT Tactrix Stage 2+ Blouch TD04 19T @ 21 psi
    Mods & Pics

  5. #4
    Registered User wrx wagone's Avatar
    Join Date
    May 2005
    Location
    Phillytown, PA
    Posts
    10,775
    Quote Originally Posted by 04.SPT.WRX View Post
    The thrust at 3K is unreal.
    My wife tells me the same thing...

    So, when are we going to put on a quality adjustable damper?

    *cough*koni*cough*



    I got some goodies in mine... I need to update my thread.
    This message printed on 100% recycled electrons.

  6. #5
    Moderator   Sasquatch's Avatar
    Join Date
    Apr 2004
    Location
    Southeastern PA
    Posts
    31,252
    I Support ClubWRX
    Quote Originally Posted by wrx wagone View Post
    So, when are we going to put on a quality adjustable damper?

    *cough*koni*cough*


    I got some goodies in mine... I need to update my thread.
    I am quite happy where everything is at now. I got several compliments at Agile on the suspension setup. Hill said this was the first Deadbolt Monster TD04 he tuned. Judging by the tune he said it appears to have been a very well built turbo. Too bad Deadbolt is dead.

    What goodies?
    Moderator for: Aftermarket Vendor & Installer Review / Detailing Forum / Engine Modifications / Exterior & Appearance
    New Member Hangout / Off Topic / Tri-State
    ScoobyDMC #003 Blobeye Syndicate #10
    2004 WRX Sedan PSM 5MT Tactrix Stage 2+ Blouch TD04 19T @ 21 psi
    Mods & Pics

  7. #6
    Registered User Crb03's Avatar
    Join Date
    Jan 2008
    Location
    southern cali
    Posts
    1,517
    Nice #'s
    "M3 drivers have no friends..." - Jeremy Clarkson

    "If something sounds too good to be true, it's best to shoot it to make sure" - Fiona Glenanne

  8. #7
    Registered User wrx wagone's Avatar
    Join Date
    May 2005
    Location
    Phillytown, PA
    Posts
    10,775
    Quote Originally Posted by 04.SPT.WRX View Post
    What goodies?
    You want to know about my goodies...

    A few things. I really do need to update my thread.
    This message printed on 100% recycled electrons.

  9. #8
    Moderator   Sasquatch's Avatar
    Join Date
    Apr 2004
    Location
    Southeastern PA
    Posts
    31,252
    I Support ClubWRX
    Quote Originally Posted by Crb03 View Post
    Nice #'s
    Thanks.

    Quote Originally Posted by wrx wagone View Post
    You want to know about my goodies...
    Pics?
    Moderator for: Aftermarket Vendor & Installer Review / Detailing Forum / Engine Modifications / Exterior & Appearance
    New Member Hangout / Off Topic / Tri-State
    ScoobyDMC #003 Blobeye Syndicate #10
    2004 WRX Sedan PSM 5MT Tactrix Stage 2+ Blouch TD04 19T @ 21 psi
    Mods & Pics

  10. #9
    Moderator Donkey's Avatar
    Join Date
    Apr 2005
    Location
    Da boonies
    Posts
    6,296
    I Support ClubWRX
    Very nice #'s!Agile does great work.Have yet to here anything bad about them.Whats your full mod list engine wise?I tried to click on your link but I'm getting some kind of "not registered" crapola.
    Last edited by Donkey; 04-09-2009 at 05:35 PM.
    Resident Adviser @ WTF Tuning, LLC
    2002 FORESTER S
    1998 FORESTER S




  11. #10
    Moderator   Sasquatch's Avatar
    Join Date
    Apr 2004
    Location
    Southeastern PA
    Posts
    31,252
    I Support ClubWRX
    Quote Originally Posted by Donkey View Post
    Very nice #'s!Agile does great work.Have yet to here anything bad about them.Whats your full mod list engine wise?
    Thanks

    Click the Mods link in my sig.
    Moderator for: Aftermarket Vendor & Installer Review / Detailing Forum / Engine Modifications / Exterior & Appearance
    New Member Hangout / Off Topic / Tri-State
    ScoobyDMC #003 Blobeye Syndicate #10
    2004 WRX Sedan PSM 5MT Tactrix Stage 2+ Blouch TD04 19T @ 21 psi
    Mods & Pics

  12. #11
    Moderator Donkey's Avatar
    Join Date
    Apr 2005
    Location
    Da boonies
    Posts
    6,296
    I Support ClubWRX
    Quote Originally Posted by 04.SPT.WRX View Post
    Thanks

    Click the Mods link in my sig.
    I tried your link but keep getting this:

    $bbuserinfo[username], you do not have permission to access this page. This could be due to one of several reasons:

    1. You did not complete your registration becuase you didn't respond to your email confirmation. Please click here to request for another confirmation email.
    2. Your user account may not have sufficient privileges to access this page. Are you trying to edit someone else's post, access administrative features or some other privileged system?
    3. If you are trying to post, the administrator may have disabled your account, or it may be awaiting activation.

    Resident Adviser @ WTF Tuning, LLC
    2002 FORESTER S
    1998 FORESTER S




  13. #12
    Moderator   Sasquatch's Avatar
    Join Date
    Apr 2004
    Location
    Southeastern PA
    Posts
    31,252
    I Support ClubWRX
    Quote Originally Posted by Donkey View Post
    I tried your link but keep getting this:

    $bbuserinfo[username], you do not have permission to access this page. This could be due to one of several reasons:

    1. You did not complete your registration becuase you didn't respond to your email confirmation. Please click here to request for another confirmation email.
    2. Your user account may not have sufficient privileges to access this page. Are you trying to edit someone else's post, access administrative features or some other privileged system?
    3. If you are trying to post, the administrator may have disabled your account, or it may be awaiting activation.

    Found the problem.

    Here is the list:

    Deadbolt Monster TD04 with all available spool fast options.
    GM Boost control solenoid.
    Cobb AccessPORT v1.0 Protune Stage 2 93 octane 19 psi maximum.
    Black Samco intercooler and throttle body hoses.
    GP Moto snorkus delete elbow.
    Perrin uppipe.
    Perrin lightened crank pulley
    Cobb stainless steel turbo heat shield.
    Cobb turbo back exhaust with high flow catalytic converter.
    Last edited by Sasquatch; 04-09-2009 at 05:58 PM.
    Moderator for: Aftermarket Vendor & Installer Review / Detailing Forum / Engine Modifications / Exterior & Appearance
    New Member Hangout / Off Topic / Tri-State
    ScoobyDMC #003 Blobeye Syndicate #10
    2004 WRX Sedan PSM 5MT Tactrix Stage 2+ Blouch TD04 19T @ 21 psi
    Mods & Pics

  14. #13
    Moderator Donkey's Avatar
    Join Date
    Apr 2005
    Location
    Da boonies
    Posts
    6,296
    I Support ClubWRX
    Quote Originally Posted by 04.SPT.WRX View Post
    Found the problem.

    Here is the list:

    Deadbolt Monster TD04 with all available spool fast options.
    GM Boost control solenoid.
    Cobb AccessPORT v1.0 Protune Stage 2 93 octane 19 psi maximum.
    Black Samco intercooler and throttle body hoses.
    GP Moto snorkus delete elbow.
    Perrin uppipe.
    Perrin lightened crank pulley
    Cobb stainless steel turbo heat shield.
    Cobb turbo back exhaust with high flow catalytic converter.
    I think you would stand to see even more gains if you had a bigger TMIC and P&P exhaust manifolds or a EL header.Still non the less that thing is a torque monster!
    Resident Adviser @ WTF Tuning, LLC
    2002 FORESTER S
    1998 FORESTER S




  15. #14
    Moderator   Sasquatch's Avatar
    Join Date
    Apr 2004
    Location
    Southeastern PA
    Posts
    31,252
    I Support ClubWRX
    Quote Originally Posted by Donkey View Post
    I think you would stand to see even more gains if you had a bigger TMIC and P&P exhaust manifolds or a EL header.Still non the less that thing is a torque monster!
    That is what the tuner said - he has never seen a TD04 2.0 liter with that torque number. I was a little surprised the HP number was not higher though ... The OTS map gave me 231 pre-Monster TD04.

    Are there substantial differences between a DynoJet and a Dynapack?
    Moderator for: Aftermarket Vendor & Installer Review / Detailing Forum / Engine Modifications / Exterior & Appearance
    New Member Hangout / Off Topic / Tri-State
    ScoobyDMC #003 Blobeye Syndicate #10
    2004 WRX Sedan PSM 5MT Tactrix Stage 2+ Blouch TD04 19T @ 21 psi
    Mods & Pics

  16. #15
    Moderator Donkey's Avatar
    Join Date
    Apr 2005
    Location
    Da boonies
    Posts
    6,296
    I Support ClubWRX
    Quote Originally Posted by 04.SPT.WRX View Post
    That is what the tuner said - he has never seen a TD04 2.0 liter with that torque number. I was a little surprised the HP number was not higher though ... The OTS map gave me 231 pre-Monster TD04.

    Are there substantial differences between a DynoJet and a Dynapack?
    Yup.All dynos read different.Thats why it's always best to stick with one.Not just that,you have to also take into account ambient temps,altitude,humidity,mechanical state of tune,dyno correction factors,dyno setup/setting.Lots of variables.I wouldn't be concerned with HP #'s too much on the stock turbo.Torque is much more important considering we are scooting around in 2.0L 4 bangers
    Resident Adviser @ WTF Tuning, LLC
    2002 FORESTER S
    1998 FORESTER S
