    the 08/09 Suspension/Brake reference

    I'm going to try and put much of the suspension/reference material for the 08/09's in one thread

    starting w/ the oe alignment and ride heights:



    it appears the 08/09's are able to get close to the same front camber as the previous gen w/ the oe eccentric bolt -1.0 - -1.3

    refer to the alignment sticky for tips/tricks for optimizing the alignment

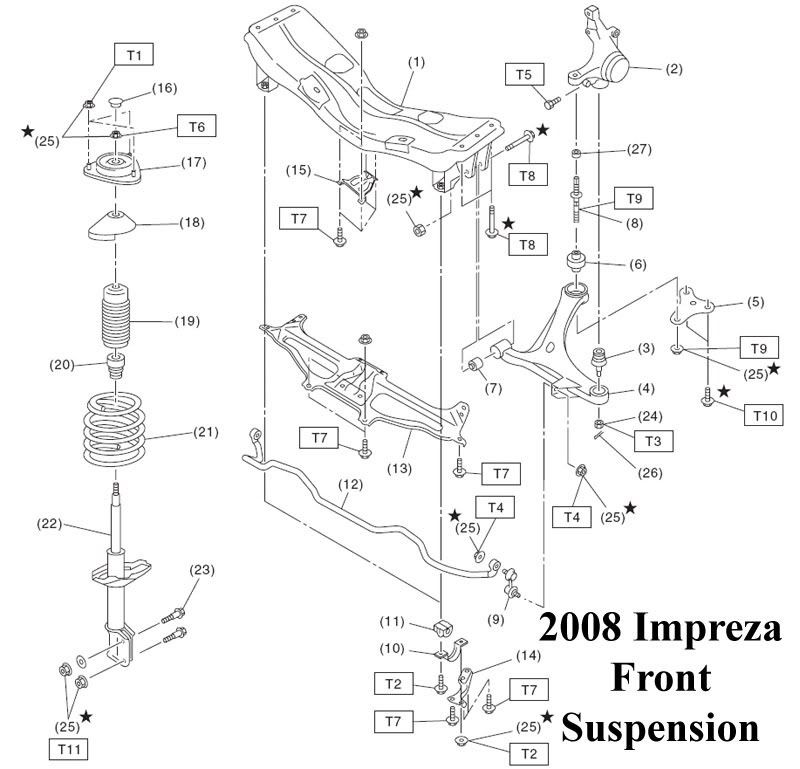

    here are the front and rear suspension schematics w/ torque specs

    Front



    torque specs



    rear w/ torque specs

    Last edited by Big Sky WRX; 02-28-2009 at 08:29 AM.
    "Simplify and add lightness." - Colin Chapman

  2. Remove Advertisements
    ClubWRX.net
    Advertisements


  3. #2
    Moderating on the run! Big Sky WRX's Avatar
    Join Date
    Jul 2001
    Location
    Plains of Eastern Montana
    Posts
    12,353
    I Support ClubWRX
    useful dimensions

    curb weight 3175 lbs
    Coefficient of drag (cd) sedan .32, hatch .34
    wheel base 103.1"
    track front 58.9", rear 59.3"

    rims 17x7 et55

    springs rates 08 f/r 151/140 #/"; 09 216/193

    sway bars 08 f/r 20/15 mm; 09 21/16

    Motion Ratio for springs front .97, rear .78; for sway bars front .56, rear .59

    Center of Gravity (cog) 20.1"

    Roll Centers front, rear -coming
    Last edited by Big Sky WRX; 02-28-2009 at 08:41 AM.
    "Simplify and add lightness." - Colin Chapman

  4. #3
    Moderating on the run! Big Sky WRX's Avatar
    Join Date
    Jul 2001
    Location
    Plains of Eastern Montana
    Posts
    12,353
    I Support ClubWRX
    saved
    "Simplify and add lightness." - Colin Chapman

  5. #4
    Moderating on the run! Big Sky WRX's Avatar
    Join Date
    Jul 2001
    Location
    Plains of Eastern Montana
    Posts
    12,353
    I Support ClubWRX
    BRAKES

    brake dimensions the 08/09 share the same front brakes as the 03-05 WRX- this means it utilizes the same rotors and pads, the rears are brand new so the pads and rotors are different than any previous Impreza



    the pad FMSI numbers are front D929, rear D1114

    929



    Last edited by Big Sky WRX; 02-28-2009 at 09:11 AM.
    "Simplify and add lightness." - Colin Chapman

  6. #5
    Registered User
    Join Date
    Mar 2009
    Posts
    133
    This is good stuff. I'm still trying to figure out if the dampers are the same between the 08 and 09.

  7. #6
    Moderating on the run! Big Sky WRX's Avatar
    Join Date
    Jul 2001
    Location
    Plains of Eastern Montana
    Posts
    12,353
    I Support ClubWRX
    they fit the same, but are valved slightly differently- not as different as we first suspected (due to the increse in spring rates)- so I'd skip an 09/10 "upgrade" on a 08- not as much as an upgrade as one would have thought

    the tops are firmer front and rear on the 09/10 however
    "Simplify and add lightness." - Colin Chapman

  8. #7
    Moderating on the run! Big Sky WRX's Avatar
    Join Date
    Jul 2001
    Location
    Plains of Eastern Montana
    Posts
    12,353
    I Support ClubWRX

    part numbers of interest
